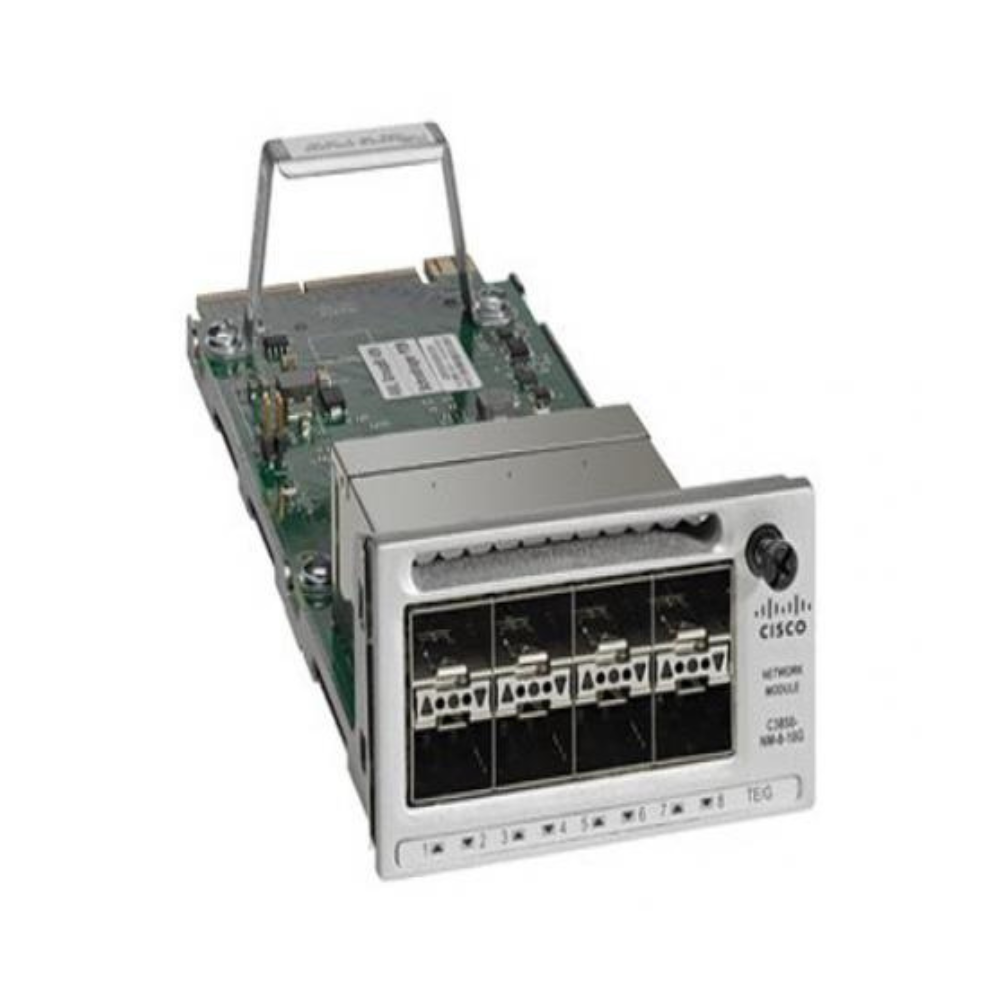

Cisco C3850-NM-8-10G Gigabit Module

The Cisco 3850-NM-8 x 10G is a networking module designed to provide Gigabit Ethernet network connection to the Cisco Catalyst 3850 Series Switches. The module with SFP+ receptacles provides high-speed connectivity for network applications, such as data center interconnects, high-performance computing clusters and SANs.

The C3850-NM-8 x 10G modules are supported on the 24-port and 48-port multigigabit switches and on the 24-port 10G SFP+ switch model. This module has eight 10 G slots with an SFP+ port in each slot. Each port supports a 1 G or 10 G connection.

The network module is hot-swappable. If you remove a module, replace it with another network module or a blank module. All ports in the C3850-NM-8-10G module default to 10 G and should be configured as TenGigabitEthernet1/1/1 through TenGigabitEthernet1/1/8, even when you are operating them as 1 G using SFP.

The module is supported on the WS-C3850-12X48U, WS-C3850-24XU, WS-C3850-24XS switches.

Features:

• 8 SFP/SFP+ Ports/Connectors.
• 10 Gbps Data Transfer Rate.
• Plug-in module.
• The network module is hot-swappable
• Wired Connectivity Technology.

Compatibility:

• WS-C3850-24XU
• WS-C3850-48XU
• WS-C3850-24XS
